Genetic Jeneratör A.Ş

GJS550
Engine: SDEC
Stand-BY Power: 550 kVA


Genset

Voltage Stand-By Power kVA Prime Power kVA
230/400 550 500

Diesel Engine Specs

 Engine Brand  SDEC
 Model  S25G610D2
 Maximum Engine Power (Stand-By)  550 KW
 Maximum Engine Power (Prime)  445 KW
 Engine Volume  25,8
 Engine Overdrive  1500 d/d
 Cylinders and Sequence:  6V
 Bore x Stroke  135x150
 Governor Type  Elektronik
 Electricity System  24V
 Oil Volume  65 Liter
 Water Capacity  48 Liter
 Fuel Capacity  935 Liter
 Fuel Consumption (100 % Lt./Sa.)  100

Alternator Specs

 Stand-By Power  550 kVA
 Prime Power  500 kVA
 Voltage  230/400 v
 Voltage Tolerance  ±1
 Frequency  50 Hz
 Revolt  1500
 Short Circuit Current  %300
 Isolation  H / IP23
 Alternator Capacity  90%

 Size and Weight

Without Canopy Weight LxWxH
(mm) 		Fuel Tank
(Lt.)
4850 Kg. 1900x3900x2570 935
With Canopy LxWxH
(mm) 		Fuel Tank
(Lt.)

5450 Kg. 1900x4800x2570 935

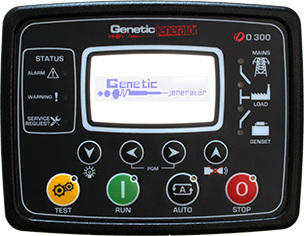

Automatic Mains Failure Unit

  • Mains and generator measurements
  • Multiple Language Support include English
  • Digital fuel level indicator
  • Displaying fault conditions on the LCD screen
  • Send SMS in case of malfunction
  • Remote monitoring from PC program via RS 232 and Ethernet port
  • Ability to set weekly work schedule
  • Programmable daily / weekly / monthly test work
  • Storing fault records
  • Opportunity to show company logo
  • Test-Run-Auto-Stop checks.
  • Service time indicator
  • Temperature and oil pressure indicator
Canopy

  • Modular cabin parts
  • Welded joints with bolts and nuts
  • Furnace paint with electrostatic polyester powder painta
  • Insulated canopy interior exhaust system
  • Emergency stop button outside canopy
  • Ability to read control board thanks to transparent window
  • Generator lifting and carrying connections


*Genetic Generator reserves the right to change all the features and product visuals given here.
